LAUMAS WDESK L

Product Details:

Key Features:

Six digits backlit LCD or red LED or Graphic display options.
Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
Possible installations: wall, panel, column, desk.
Multiprogram: single loading/unloading and multi-product batching max 99 formulas.
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
3 logic inputs, 5 relay outputs.
OIML R76:2006 approved class III, 10000 divis. 0.2μV/VSI
OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)

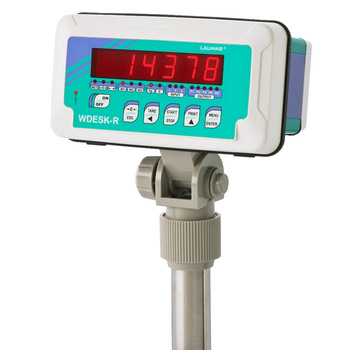

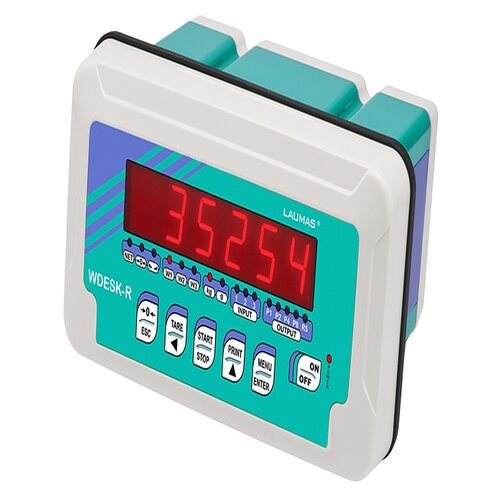

ABS Weight Indicator, dimensions 122 x 226 x 164 mm. IP67 protection rating. Six-key membrane keyboard. 46 indicator symbols. Real-time clock/calendar.
Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
Connections to:
– PLC via analog output (on request);
– PC/PLC via RS485/RS232 (up to 99 instruments with line repeaters,
up to 32 without line repeaters);
– remote display and printer via RS485/RS232;
– up to 8 load cells in parallel by junction box;
– intelligent junction box or other multichannel instruments: allow the use of advanced functions as digital equalization, load distribution analysis, and automatic diagnostics.

Digital filter to reduce the effects of weight oscillation.
Theoretical calibration (via keyboard) and real calibration (with sample weights and the possibility of weight linearization up to 5 points).
Tare weight zero settings.
Automatic zero settings at power-on.
Gross weight zero trackings.
Semi-automatic tare (net/gross weight) and preset tare.
Semi-automatic zero.
Displaying of the maximum weight value reached (peak).
The direct connection between RS485 and RS232 without a converter.
Weight value printing with the date and time via keyboard or external contact.
TCP/IP WEB APP
Integrated software in combination with the WiFi module and Ethernet TCP/IP options for remote supervision, management, and control of the instrument
