LAUMAS WINOX

Product Details:

Key Features:

Six digits backlit LCD or red LED or Graphic display options.
Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal.
Possible installations: wall, panel, column, desk.
Multiprogram: single loading/unloading and multi-product batching max 99 formulas.
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol).
3 logic inputs, 5 relay outputs.
OIML R76:2006 approved class III, 10000 divis. 0.2μV/VSI
OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)

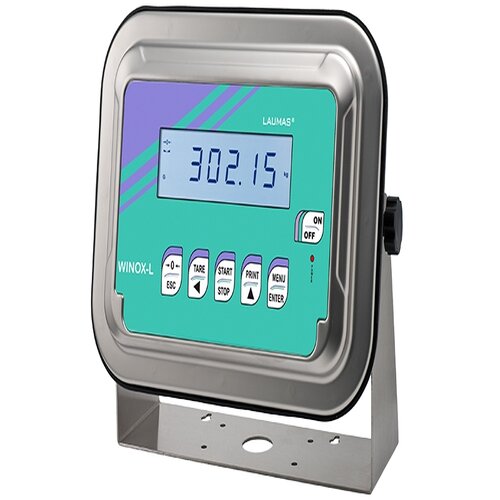

Stainless steel Weight Indicator, dimensions 206 x 286 x 108 mm, stainless steel adjustable bracket included (overall dimensions: 206 x 290 x 187 mm). IP68 protection rating (IPX9K optional). Six-key membrane keyboard. 46 indicator symbols. Real-time clock/calendar. Different versions for various types of electrical connections: cable glands, D-SUB connectors, removable terminal board/connectors.
Possible installations: wall, panel, column, desk
Multiprogram: single loading/unloading and multi-product batching, max 99 formulas
Six-digit backlit LCD display, 20 mm height
RS232 and RS485 ports (Modbus RTU/Laumas ASCII protocol)
3 logic inputs, 5 relay outputs
OIML R76:2006 approved class III, 10000 divis. 0.2μV/VSI
OIML R61 approved – WELMEC Guide 8.8:2011 (M.I.D.)
Optional fieldbuses: Profibus DP, DeviceNet, CANopen, Profinet IO, Modbus/TCP, Ethernet/IP. Ethernet TCP/IP port for remote management via the internet from PC, smartphone or tablet, etc.
A/D converter 24bit (16000000 points) 4.8 kHz
Display range 999999

Some optional features:
