- Vertical Metal detectors for granular and powder products in high flow tubing and piping.
- The instrument is used in vertical packaging lines: the product goes through the circular transit aperture which, upon detecting metal contaminants, emits an alarm, allowing it to be removed.
- The MDC11 is positioned immediately upstream of the packaging machine, just before the product falls into the package, in order to exclude the possibility of further contaminants getting in between detection and closing the package, which can be made from any material.
- The transit aperture is made with inert materials that ensure the coil is completely sealed. The multi-frequency electronics, combined with advanced functions – like self-check, automatic calibration, and tracking – guarantee top-level performance and fully meet the most common standards (including, among others: BRC, Marks & Spencer…) and the need to minimize false rejects.
- Product transit aperture diameter: 130 to 240 mm, with a maximum scanning potential of 100 m/minute and it is able to detect any type of metal contaminant: ferrous, non-ferrous and stainless.
- Multi-frequency technology
The multi-frequency electronics result in high-level immunity from environmental interferences (dry, humid, cool and frozen) and extremely high sensitivity to all magnetic and non-magnetic metals, including stainless metals, thereby guaranteeing top-level performances. - Simple, functional electronics
Digital electronics with alphanumeric display complete with self-check, automatic balancing, and tracking functions. Bi-dimensional image digital principle of operation. Possibility of adjusting phases and storing up to 100 programs. An RS232 C serial port is also available. Multi-level password-protected access reduces human error to a minimum. - Stable, safe and easily serviced mechanics

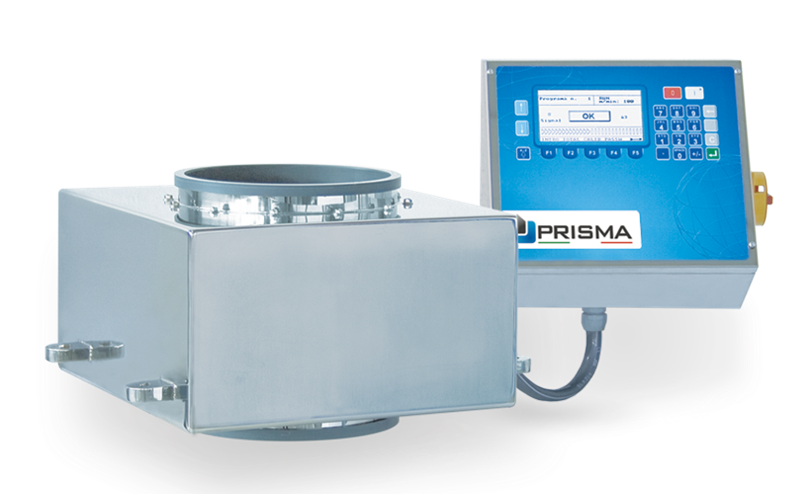

The machine consists of a metal detector coil and an electronic device with its control panel, supplied in a separate stainless panel with IP65 protection. The coil has a transit aperture made of inert material that ensures it is completely sealed and allows it to come in direct contact with the product. The aperture is available in several sizes, with diameters from 130 to 240 mm, and relative product flows.
MDC11
- Power supply: 230 V 50/60Hz single-phase
- Power consumption: 200 W
- Mirror finishing of metal parts: Stainless steel IP54-IP65
- The climatic environment: from 5°C up to +40°C non-condensing (closed)
- Regulations: Conformity with CE regulations and with international standards for Electrical Safety and Electromagnetic Compatibility
