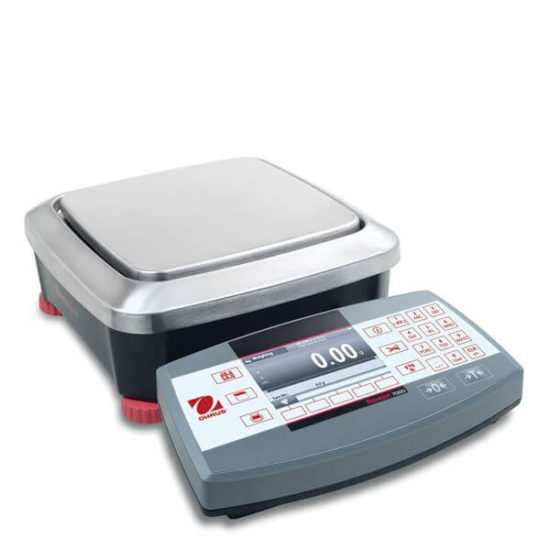

Ohaus RANGER 7000 R71MHD35

HomeBench ScaleOhaus RANGER 7000 R71MHD35
Zoom
Ranger-7000-USP2
Ranger-7000-USP1
Ranger-7000-USP3

Ohaus RANGER 7000 R71MHD35

Write your comment
Maximum Capacity 35 kg
Readability 0.1 g
Pan Size 311 mm x 377 mm

For Ranger 7000, there is one resounding theme: it offers the best of every ingenious feature that makes OHAUS industrial products the right tools for your toughest weighing jobs. Ranger 7000 boasts the highest resolution, largest display, most application modes, and connectivity options, as well as the largest memory library of any industrial bench scale in the OHAUS portfolio.

  • Applications
Weighing, Parts Counting with Auto Optimization, Percent Weighing, Advanced Checkweighing, Animal/Dynamic Weighing, Display Hold, Filling, Formulation, Differential Weighing, Density Determination, Sieve Analysis
  • Display

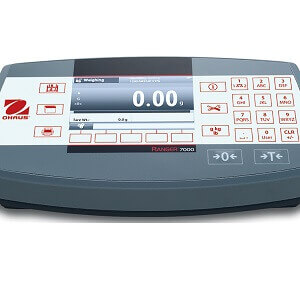

4.3″ (109 mm) Full-color WQVGA graphic display with user-controlled brightness
  • Operation
AC power (included) or rechargeable battery (accessory sold separately)
  • Communication
Easy access communication port including standard USB and RS232 (included) and an optional third port of RS232 or Ethernet (accessories sold separately). GLP/GMP Data Output with Real Time Clock. Data Transfer Function.
  • Construction

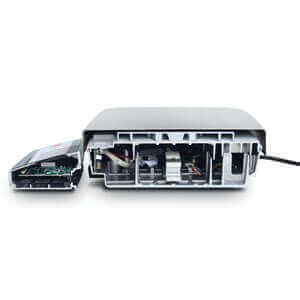

Modular design, die-cast housing, removable stainless steel platform, integral weigh below hook, menu lock switch, level indicator
  • Design Features
Checkweighing lights with selectable operation and audible signal settings, several selectable operating languages, selectable environmental and autoprint settings, stability indicator, overload/underload indicators, selectable brightness settings, auto-dim, auto-sleep, auto tare, chain tare
Send Inquiry

SPECIFICATIONS

Maximum Capacity 35 kg
Readability 0.1 g
Readability (Certified) 1 g
Platform Size 311 mm x 377 mm
Battery Life 9 Hours with Rechargeable Battery
Second Scale Input Yes
Communication USB (Included);  RS232 (Included);  2nd RS232 (Available as an Accessory);  Ethernet (Available as an Accessory)
Dimensions 5 in x 18.4 in x 14.9 in (128 mm x 467 mm x 377 mm)
Display 4.3’’/10.9 cm TFT Graphic LCD
Internal Calibration AutoCal™ – Automatic
In-use cover Included
Legal for Trade EC Type Approvable;  NTEP Certified;  Measurement Canada Approved
Linearity ± 0.2 g
Net Weight 24 lb (10.9 kg)
Outputs 3 In/4 Out digital I/O
Platform Construction Stainless Steel
Power AC Power (Included);  Rechargeable Battery (Not Included)
Protection Rating IP54
Tare Range To capacity by subtraction
Transportation Case Not Applicable
Units of Measurement Gram;  Kilogram;  Ounce;  Pound;  Pound:Ounce;  Custom
Working Environment 50°F – 85°F, 80%RH, non-condensing (10°C – 30°C, 80%RH, non-condensing)
