| Model | MOC-120H | |
| Measuring method | Infrared heat drying mass measurement | |
| Sample pan size | ø130 mm | |
| Minimum display in weighing | 0.001 g | |
| Measurement range of moisture content | 0.01 % to 100.00 % | |
| Moisture content minimum display | 0.01% | |
| Maximum sample capacity | 120 g | |
| Measurement mode | Automatic or Timed halting modes, Rapid, Slow and Step drying modes, Predictive Measuring mode | |
| Drying heater | Mid-wave infrared quartz heater | |
| Setting temperature range | 30 °C to 200 °C (by 1 °C increments) | |
| Dimensions & weight | W220 x D415 x H190 (mm), 4.5 kg | |
| Operational temperature and humidity range | range 5 °C to 40 °C, 85 % RH maximum | |
| Power requirements | 100 V to 127 V/220 V to 240 V AC, 640 W maximum | |
| Standard accessories | Sample pan 2 pcs, sample pan stop, windbreak case, sample pan, handler 2 pcs, aluminum sheet 20 pcs, spoon, spatula | |

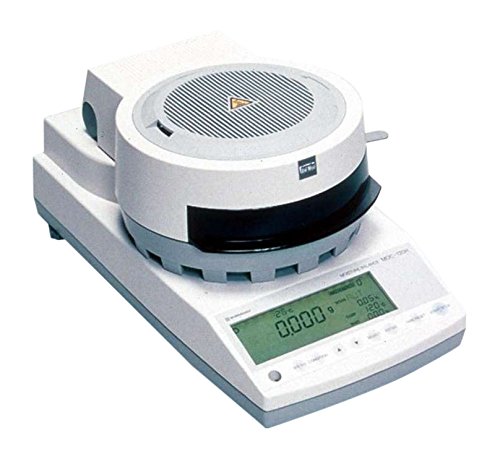

Shimadzu MOC 120H
| Maximum Capacity | 120g |
| Readability | 0.0001 g |
| Pan Size | 130 mm |
MOC-120H Features
- A large sample pan (130mm diameter) enables a large amount of sample to be placed evenly in a thin layer.

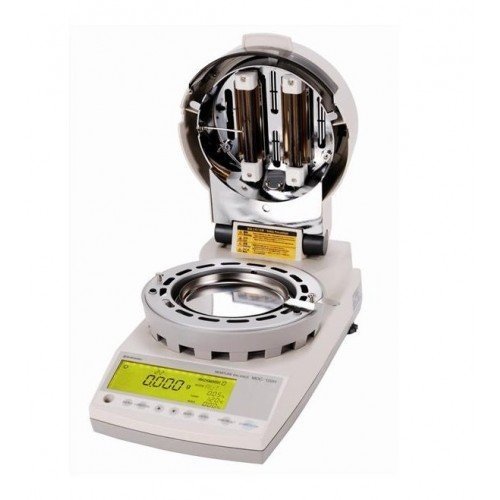

- A mid-wave infrared quartz heater provides effective drying without interference for a wide range of samples.
- The internal precision weighing balance is engineered with a Shimadzu UniBloc cell.
Various measuring modes
Digital control allows a selection of measurement modes.
10 sets of measurement settings can be stored for quick recall.
Select one of the 9 combinations of drying and halting modes to optimize the measurement of your sample.
Auto-taring mechanism
The MOC-120H is equipped with a unique auto-taring mechanism, which adjusts the zero drift automatically and ensures high accuracy, even when measuring during an extended period.
Bias correction function…
Accurate moisture measurement with new weight sensor: UniBloc
The moisture content of a variety of samples can be measured using an array of drying modes. The drying status can be seen at-a-glance with the fluctuation range display. Active in a variety of fields (cereals, starch, flour, noodles, brewed products, sea foods and marine products, meat products, spices, sweets, dairy products, dried foods, vegetable oils and other food articles; pharmaceuticals; ores; cokes; glass materials; cement; chemical fertilizers; pulp and paper; cotton; various fabrics and other industrial goods); enabling measurement of samples (cereals, foods, and chemical products) under various conditions (powder, particles, paste, and liquid).
