| Capacity | 60g | |
| 0.02g | ||
| Minimum readability | 0.001g | |
| 0.01/0.1% (Selectable) | ||
| Repeatability | 0.15% (2g) | |
| 0.05% (5g) | ||
| 0.02% (10g) | ||
| Drying Heater | Straight type halogen heater | |
| Power | 400W | |
| Temperature range | 50-200°C (1°C increments) | |
| Setting | (There is a time restriction when exceeding 180°C.) | |
| Display | LCD with backlight | |
| Pan size | 95mm dia | |
| Dimension | (W×D×H) mm 202 × 336 × 157 | |
| Weight | 4kg | |
| Operational temperature and humidity range | 5 to 40°C, 85%RH or lower | |
| Measurement modes | Standard | |
| (Easy start/Automatic end/Timed end) | ||
| Rapid drying | ||
| (Easy start/Automatic end/Timed end) | ||
| Slow drying | ||
| (Easy start/Automatic end/Timed end) | ||
| Step drying | ||
| (Easy start/Automatic end/Timed end) | ||
| Timer setting | 1-120 minutes or continuous | |
| (max 12 hours) | ||
| Interface | RS-232C (9-pin connector) I/O port | |
| USB port | ||
| Measurement conditions data memory | 10 | |
| Data memory | 100 | |

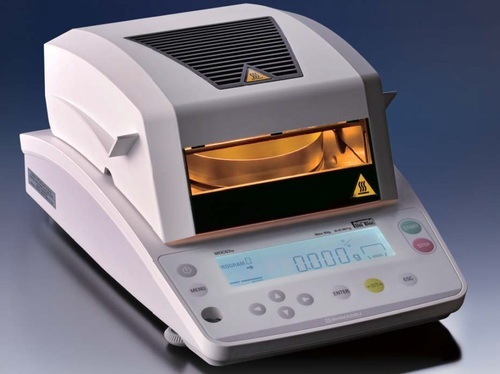

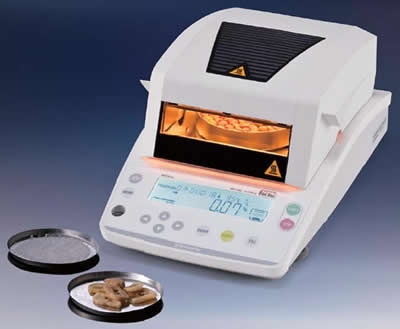

Shimadzu MOC 63u
Excellent performance for a wide variety of applications in multiple industries
In many fields, a moisture analyzer is a necessary tool for quality control requirements. With the MOC63u, you can easily obtain accurate data. Simply place material on the pan and shut the cover. The MOC63u will start to measure. The MOC63u adapts to various materials and increases your work efficiency.
- Halogen heater
Long-life and high power halogen heater provides quick and accurate measurement.
The temperature can be changed from 50 degrees to 200 degree Celsius.
You can check sample status from window while measurement.
- Large pan size: 95mm dia
MOC63u has large pwn. (95mm diameter)
It can provide quick and accurate measurement to spread sample in thin layer on the pan.
- Data management and easy operation
Built-in USB port
WindowsDirect
Easy operation using a simple keypad
- Various measurement modes
Automatic ending mode
Timed ending mode
Slow drying mode
Step drying mode
Starting mode
